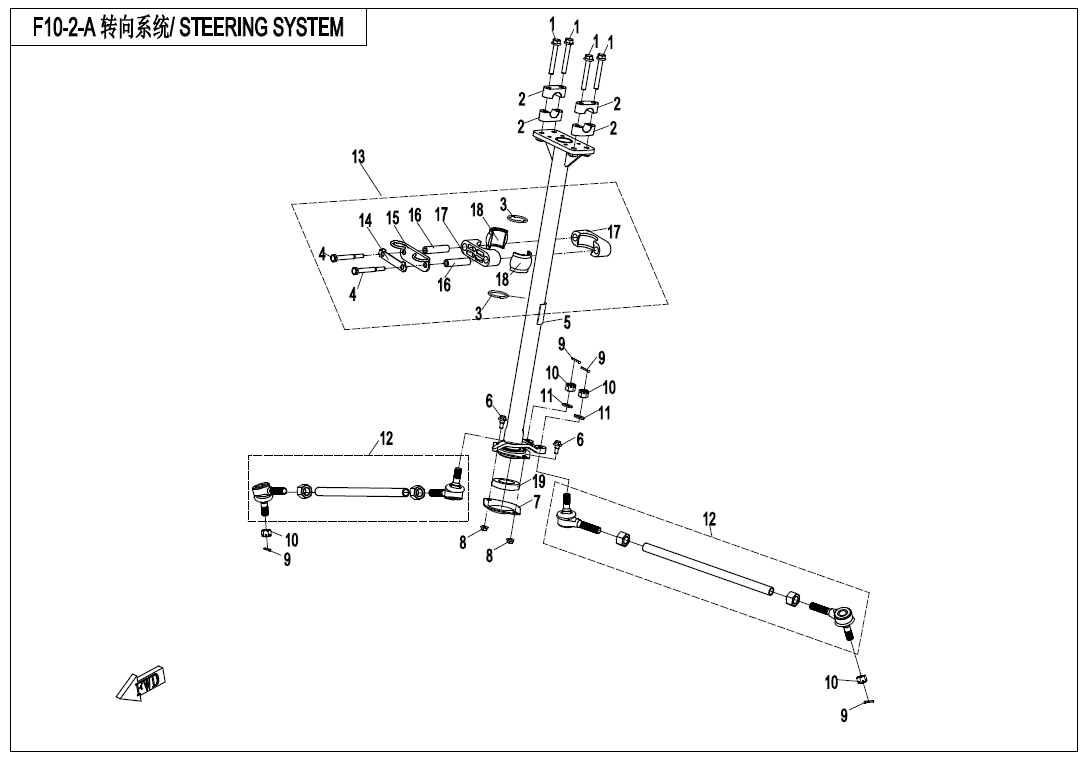

STEERING SYSTEM - F10-2-A

STEERING SYSTEM - F10-2-A

No.

01
P/N (SKU): 30006-080055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×55
Price: 2,00 € : 2,00 €
-+
02
P/N (SKU): 9010-030006
Part Name: HANDLEBAR ALLUMINUM COVER
Effective: 2021-02-26
Alternative parts: 9DSV-100001-6K00
Price: 8,50 € : 8,50 €
03
P/N (SKU): 30502-032800N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 32x1.8
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 9010-100404
Part Name: SEAL RING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 30003-080060810
Part Name: BOLT M8x60
Effective: 2021-02-26
Alternative parts: 30003-080075810
Specification: M8x60
Price: 1,50 € : 1,50 €
05
P/N (SKU): 7020-100310
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 53,00 € : 53,00 €
-+
06
P/N (SKU): 7020-100001
Part Name: BOLT M8x22
Effective: 2021-02-26
Alternative parts:
Specification: M8x22
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 8010-000005-1000
Part Name: BOLT M6x17
Effective: 2021-02-26
Alternative parts:
Specification: M6x17
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 7020-100301
Part Name: SEAT, STEERING SHAFT
Effective: 2021-02-26
Remarks: is replaced by 7020-100301-10000
Alternative parts: 7020-100301-10000
Price: 5,00 € : 5,00 €
08
P/N (SKU): 30204-060840
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30903-0201640
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts: 30903-0201610
Price: 1,50 € : 1,50 €
09
P/N (SKU): 30903-0252610
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: 2.5x26
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 30306-100112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ10
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9010-100530
Part Name: STEERING ROD
Effective: 2021-02-26
Remarks: SOMIC；is replaced by 9010-100530-1000
Alternative parts: 9010-100530-20000
Price: 38,00 € : 38,00 €
13
P/N (SKU): 7020-1006A0
Part Name: BUSHING, STEERING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 33,00 € : 33,00 €
-+
13
P/N (SKU): 9010-1004A0
Part Name: BUSHING, STEERING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
14
P/N (SKU): 7020-100603
Part Name: LOCKING PIECE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 7020-100610
Part Name: LINKING PLATE ASSY
Effective: 2021-02-26
Alternative parts: 7020-100610-10000
Price: 3,50 € : 3,50 €
16
P/N (SKU): 7020-100604
Part Name: BUSHING
Effective: 2021-02-26
Remarks: is replaced by 7020-100604-00001
Alternative parts: 7020-100604-00001
Price: 3,00 € : 3,00 €
17
P/N (SKU): 7020-100601
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2021-02-26
Remarks: is replaced by 7020-100601-00001
Alternative parts: 7020-100601-00001
Price: 4,50 € : 4,50 €
18
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2021-02-26
Alternative parts:
Price: 9,00 € : 9,00 €
-+
19
P/N (SKU): 7020-100600
Part Name: BEARING, OUTER SPHERICAL
Effective: 2021-02-26
Alternative parts:
Specification: 205
Price: 21,00 € : 21,00 €
-+
