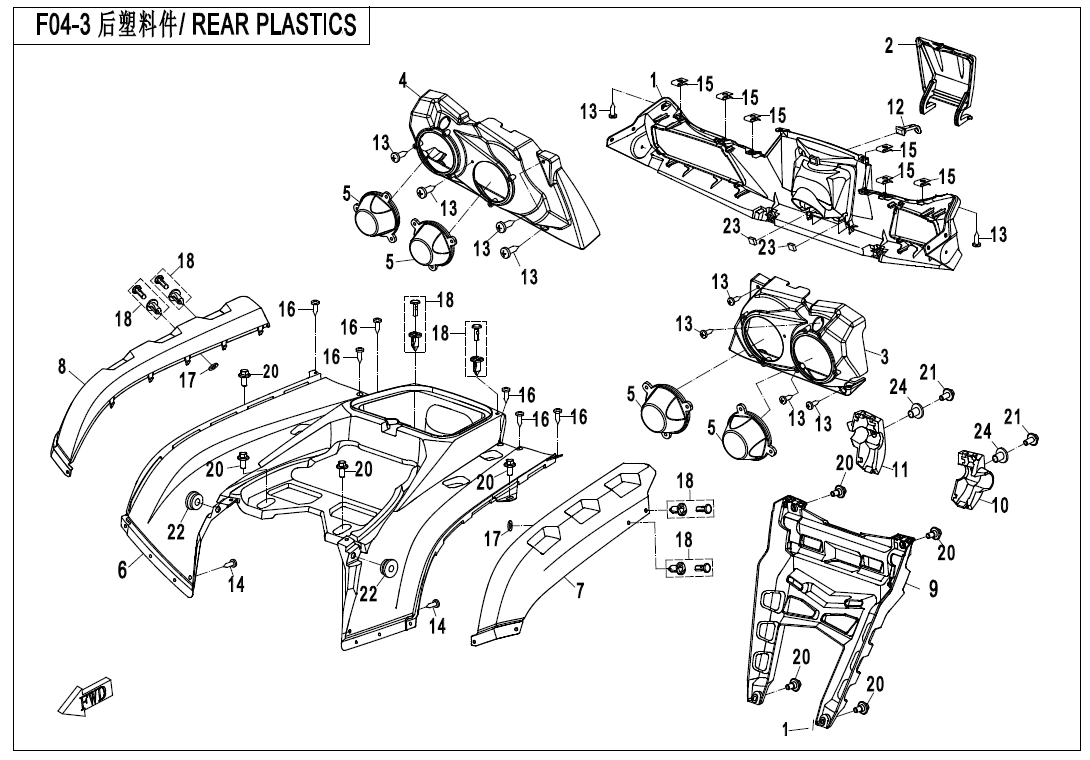

REAR PLASTICS - F04-3

REAR PLASTICS - F04-3

No.

01
P/N (SKU): 7020-040311
Part Name: TAIL LIGHT PANEL
Effective: 2021-02-26
Alternative parts: 7020-040311-10000
Price: 71,00 € : 71,00 €
02
P/N (SKU): 7020-040312-0B00
Part Name: FUEL TANK FILLER COVER
Effective: 2021-02-26
Remarks: BLACK
Specification: BLACK
Price: 19,00 € : 19,00 €
-+
02
P/N (SKU): 7020-040312-0W00
Part Name: FUEL TANK FILLER COVER
Effective: 2021-02-26
Remarks: MAPLE CAMO
Specification: NEW MAPLE CAMO
Price: 28,00 € : 28,00 €
-+
02
P/N (SKU): 7020-040312-0V20
Part Name: FUEL TANK FILLER COVER
Effective: 2021-02-26
Remarks: PEARL WHITE
Specification: PEARL WHITE
Price: 19,00 € : 19,00 €
-+
02
P/N (SKU): 7020-040312-0B50
Part Name: FUEL TANK FILLER COVER
Effective: 2021-02-26
Remarks: TITANIUM GREY
Specification: TITANIUM GREY GLOSS
Price: 19,00 € : 19,00 €
-+
02
P/N (SKU): 7020-040312-0R40
Part Name: FUEL TANK FILLER COVER
Effective: 2021-02-26
Remarks: FERRALI RED
Specification: FIRE RED
Price: 19,00 € : 19,00 €
-+
02
P/N (SKU): 7020-040312-0Y60
Part Name: FUEL TANK FILLER COVER
Effective: 2021-02-26
Remarks: CRYSTAL ORANGE
Specification: CRYSTAL ORANGE
Price: 18,00 € : 18,00 €
-+
02
P/N (SKU): 7020-040312-0H20
Part Name: null
Effective: 2021-02-26
Remarks: METALLIC GREY
Price: 19,00 € : 19,00 €
-+
02
P/N (SKU): 7020-040312-0E40
Part Name: FUEL TANK FILLER COVER
Effective: 2021-02-26
Remarks: METALLIC BLUE
Specification: METAL BLUE
Price: 19,00 € : 19,00 €
-+
03
P/N (SKU): 7020-040313
Part Name: GUARD, LH TAIL LIGHT
Effective: 2021-02-26
Remarks: is replaced by 7020-040313-1000
Alternative parts: 7020-040313-1000
Price: 7,00 € : 7,00 €
03
P/N (SKU): 7020-040313-1000
Part Name: GUARD, LH TAIL LIGHT
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
04
P/N (SKU): 7020-040314
Part Name: RH TAIL LIGHT GUARD
Effective: 2021-02-26
Remarks: is replaced by 7020-040314-1000
Alternative parts: 7020-040314-1000
Price: 7,00 € : 7,00 €
04
P/N (SKU): 7020-040314-1000
Part Name: GUARD, RH TAIL LIGHT
Effective: 2021-02-26
Price: 12,00 € : 12,00 €
-+
05
P/N (SKU): 7020-040316
Part Name: TAIL LIGHT CAP
Effective: 2021-02-26
Remarks: BLACK；is replaced by 7020-040316-1000+7020-040313-1000(or 7020-040314-1000)+30110-420160040(6)
Alternative parts: 7020-040313-1000+7020-040316-1000
Price: 3,50 € : 3,50 €
05
P/N (SKU): 7020-040316-1000
Part Name: TAIL LIGHT CAP
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
06
P/N (SKU): 7020-040301-0B50
Part Name: REAR FENDER
Effective: 2021-02-26
Remarks: TITANIUM GREY
Specification: TITANIUM GREY GLOSS
Price: 248,00 € : 248,00 €
-+
06
P/N (SKU): 7020-040301-0H20
Part Name: REAR FENDER
Effective: 2021-02-26
Remarks: METALLIC GREY
Specification: METAL GREY
Price: 248,00 € : 248,00 €
-+
06
P/N (SKU): 7020-040301-0R40
Part Name: REAR FENDER
Effective: 2021-02-26
Remarks: FERRALI RED
Specification: FIRE RED
Price: 248,00 € : 248,00 €
-+
06
P/N (SKU): 7020-040301-0W00
Part Name: REAR FENDER
Effective: 2021-02-26
Remarks: MAPLE CAMO
Specification: NEW MAPLE CAMO
Price: 251,00 € : 251,00 €
-+
06
P/N (SKU): 7020-040301-0B00
Part Name: REAR FENDER
Effective: 2021-02-26
Remarks: BLACK
Specification: BLACK
Price: 248,00 € : 248,00 €
-+
06
P/N (SKU): 7020-040301-0E40
Part Name: REAR FENDER
Effective: 2021-02-26
Remarks: METALLIC BLUE
Specification: METAL BLUE
Price: 248,00 € : 248,00 €
-+
06
P/N (SKU): 7020-040301-0Y60
Part Name: REAR FENDER
Effective: 2021-02-26
Remarks: CRYSTAL ORANGE
Specification: CRYSTAL ORANGE
Price: 249,00 € : 249,00 €
-+
06
P/N (SKU): 7020-040301-0V20
Part Name: REAR FENDER
Effective: 2021-02-26
Remarks: PEARL WHITE
Specification: PEARL WHITE
Price: 248,00 € : 248,00 €
-+
07
P/N (SKU): 7020-040302
Part Name: REAR EDGING, LH
Effective: 2021-02-26
Price: 27,00 € : 27,00 €
-+
08
P/N (SKU): 7020-040303
Part Name: REAR RH EDGING
Effective: 2021-02-26
Price: 27,00 € : 27,00 €
-+
09
P/N (SKU): 7020-040304
Part Name: REAR DECO PLATE
Effective: 2021-02-26
Price: 26,00 € : 26,00 €
-+
10
P/N (SKU): 7020-040305
Part Name: REAR RUBBER BLOCK, LH
Effective: 2021-02-26
Price: 16,00 € : 16,00 €
-+
11
P/N (SKU): 7020-040306
Part Name: REAR RH RUBBER BLOCK
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
12
P/N (SKU): 7020-040315
Part Name: BAND, FUEL TANK FILLER COVER
Effective: 2021-02-26
Price: 8,50 € : 8,50 €
-+
13
P/N (SKU): 30110-420160040
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-420160010
Specification: ST4.2x16@ARMY GREEN
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30110-480160040
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-480160010
Specification: ST4.8x16@ARMY GREEN
Price: 1,50 € : 1,50 €
15
P/N (SKU): 8010-000002
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts: F07V-040002-1000
Specification: ST4.2
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30110-420130040
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-420130010
Specification: ST4.2x13@ARMY GREEN
Price: 2,00 € : 2,00 €
17
P/N (SKU): 30306-080142
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 30306-080112
Specification: 8
Price: 1,50 € : 1,50 €
18
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-02-26
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30006-060020840
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 30006-060020810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
22
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 8030-190004
Part Name: REAR FOOTREST DAMPER
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 7020-040370
Part Name: T SHAPE BUSHING ASSY
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
