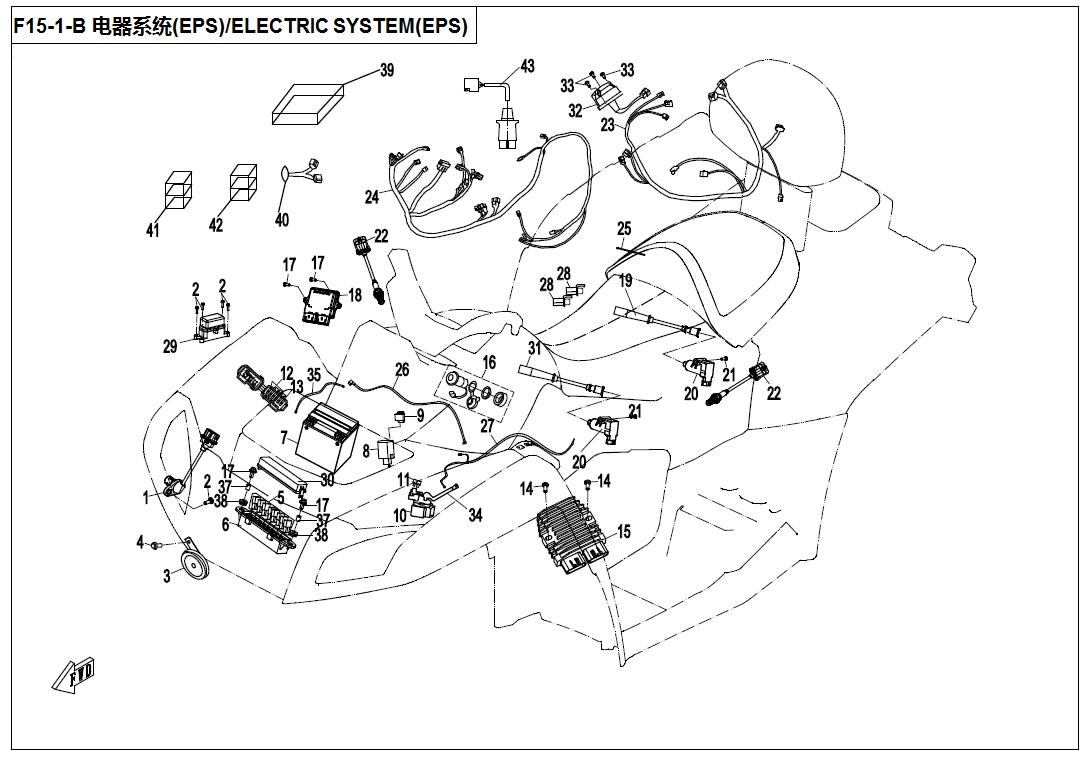

ELECTRIC SYSTEM(EPS) - F15-1-B

ELECTRIC SYSTEM(EPS) - F15-1-B

No.

01
P/N (SKU): 7020-150401
Part Name: SPEED SENSOR ADAPTOR WIRE
Effective: 2021-02-26
Alternative parts:
Price: 7,35 € : 7,35 €
-+
02
P/N (SKU): 30006-060025840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
04
P/N (SKU): 30006-060030840
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts: 30006-060030810
Specification: M6x30
Price: 0,55 € : 0,55 €
05
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,65 € : 6,65 €
-+
06
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 7,15 € : 7,15 €
-+
07
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 30A,DYNOVOLT
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 155,00 € : 155,00 €
08
P/N (SKU): 8010-151000
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
09
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 23,30 € : 23,30 €
-+
10
P/N (SKU): 7020-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 23,30 € : 23,30 €
-+
11
P/N (SKU): 9010-150301
Part Name: FUSE
Effective: 2021-02-26
Alternative parts:
Specification: 22A
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts:
Specification: 15A
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0800-177000
Part Name: REGULATOR
Effective: 2021-02-26
Remarks: FOR EPS
Alternative parts: 0800-177000-10000
Specification: HIGH POWER, JAPANESE
Price: 233,90 € : 233,90 €
15
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: 330W
Price: 102,20 € : 102,20 €
-+
16
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 15,20 € : 15,20 €
-+
17
P/N (SKU): 30006-060016840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060016810
Specification: M6x16
Price: 0,55 € : 0,55 €
18
P/N (SKU): 0800-174000-3000
Part Name: ECU
Effective: 2021-02-26
Remarks: X8,Only used if speed sensor mounted on engine output coupler
Alternative parts:
Specification: DELPHI MT05.3
Price: 215,60 € : 215,60 €
-+
18
P/N (SKU): 0800-174000
Part Name: ECU
Effective: 2021-02-26
Remarks: Only used on X8 which speed sensor mounted on front wheel
Alternative parts:
Specification: DELPHI MT05.3
Price: 392,10 € : 392,10 €
-+
19
P/N (SKU): 0800-179100
Part Name: HIGH-TENSION CABLE ASSY 1
Effective: 2021-02-26
Alternative parts: 0800-179100-10000
Price: 10,10 € : 10,10 €
20
P/N (SKU): 0800-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 45,30 € : 45,30 €
-+
21
P/N (SKU): 30006-060040840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 0800-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 125,60 € : 125,60 €
-+
23
P/N (SKU): 7020-150300
Part Name: EFI AUXILIARY CABLE, X8
Effective: 2021-02-26
Alternative parts:
Price: 85,40 € : 85,40 €
-+
24
P/N (SKU): 7020-150100-3000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: EPS
Alternative parts: 7020-150100-30001
Specification: EPS
Price: 131,50 € : 131,50 €
25
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
26
P/N (SKU): 7020-150220
Part Name: CABLE, STARTING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 18,30 € : 18,30 €
-+
27
P/N (SKU): 7020-150210
Part Name: NEGATIVE CABLE, LONG
Effective: 2021-02-26
Alternative parts:
Price: 18,70 € : 18,70 €
-+
28
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,45 € : 2,45 €
-+
30
P/N (SKU): 7020-040412
Part Name: COVER, RELAY BOX
Effective: 2021-02-26
Alternative parts: 7020-040412-10000
Price: 6,10 € : 6,10 €
31
P/N (SKU): 0800-179200
Part Name: HIGH-TENSION CABLE ASSY 2
Effective: 2021-02-26
Alternative parts: 0800-179200-10000
Price: 10,65 € : 10,65 €
-+
32
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 12,10 € : 12,10 €
-+
33
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 0,55 € : 0,55 €
-+
34
P/N (SKU): 7020-150230
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-02-26
Alternative parts:
Price: 15,10 € : 15,10 €
-+
35
P/N (SKU): 7020-150240
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
37
P/N (SKU): 6090-040303
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
38
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
39
P/N (SKU): 7020-151000
Part Name: EPS CONTROLLER
Effective: 2021-02-26
Remarks: is replaced by 9CR6-103400
Alternative parts:
Price: 418,80 € : 418,80 €
-+
40
P/N (SKU): 7020-151010
Part Name: EPS LINK CABLE
Effective: 2021-02-26
Alternative parts:
Price: 29,70 € : 29,70 €
-+
41
P/N (SKU): 7020-150101
Part Name: PLUG 1, EPS CONTROLLER
Effective: 2021-02-26
Remarks: RUSSIA ONLY
Alternative parts:
Price: 2,60 € : 2,60 €
-+
42
P/N (SKU): 7020-150102
Part Name: PLUG 2, EPS CONTROLLER
Effective: 2021-02-26
Remarks: RUSSIA ONLY
Alternative parts:
Price: 1,85 € : 1,85 €
-+
43
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 13,20 € : 13,20 €
-+
