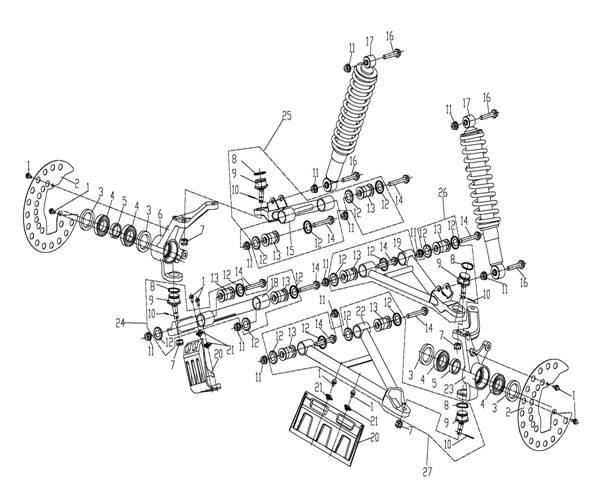

FRONT SUSPENSION ASSY - F14

FRONT SUSPENSION ASSY - F14

No.

01
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 1,50 € : 1,50 €
02
P/N (SKU): 9030-050005
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
03
P/N (SKU): 30500-040800N
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: FB40x55x8
Price: 3,00 € : 3,00 €
-+
04
P/N (SKU): 30400-03080
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6006-2RS
Price: 9,00 € : 9,00 €
-+
05
P/N (SKU): 9030-050003
Part Name: MIDDLE SPACER
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 9030-050001
Part Name: RH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Price: 66,00 € : 66,00 €
-+
07
P/N (SKU): 30219-122810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 30804-03205
Part Name: CIRCLIPS FOR SHAFT 32
Effective: 2021-02-26
Alternative parts: 30801-03205
Specification: 32
Price: 1,50 € : 1,50 €
09
P/N (SKU): 9030-050600
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Alternative parts: 9030-050600-10000
Specification: SOMIC
Price: 38,00 € : 38,00 €
10
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 1,50 € : 1,50 €
12
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
14
P/N (SKU): 30006-102070840
Part Name: BOLT M10x1.25x70
Effective: 2021-02-26
Alternative parts: 30006-102070810
Specification: M10x1.25x70
Price: 2,50 € : 2,50 €
15
P/N (SKU): 9030-050300
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 50,00 € : 50,00 €
-+
16
P/N (SKU): 30006-102055840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): 9030-050500
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts:
Price: 83,00 € : 83,00 €
-+
18
P/N (SKU): 9030-050400
Part Name: FRONT RH LOWER SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 55,00 € : 55,00 €
-+
19
P/N (SKU): 9030-050100
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 55,00 € : 55,00 €
-+
20
P/N (SKU): 9030-050004
Part Name: FENDER, SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
21
P/N (SKU): 8030-040800
Part Name: NUT CLIP M6
Effective: 2021-02-26
Alternative parts: 8030-040800-00001
Specification: M6
Price: 1,50 € : 1,50 €
22
P/N (SKU): 9030-050200
Part Name: FRONT LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts:
Price: 55,00 € : 55,00 €
-+
23
P/N (SKU): 9030-050002
Part Name: LH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Price: 66,00 € : 66,00 €
-+
24
P/N (SKU): 9030-0504A0
Part Name: FRONT RH LOWER SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 68,00 € : 68,00 €
-+
25
P/N (SKU): 9030-0503A0
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 61,00 € : 61,00 €
-+
26
P/N (SKU): 9030-0501A0
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 66,00 € : 66,00 €
-+
27
P/N (SKU): 9030-0502A0
Part Name: FRONT LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts:
Price: 68,00 € : 68,00 €
-+
