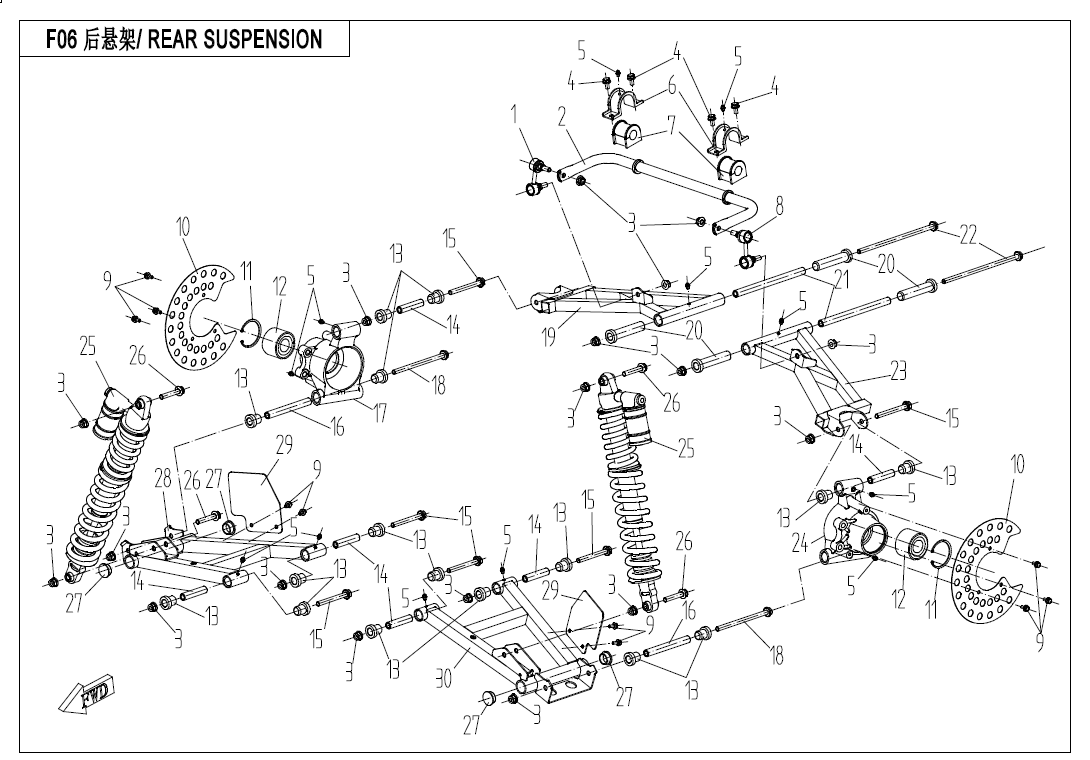

REAR SUSPENSION - F06

No.

01
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
02
P/N (SKU): 7000-060610
Part Name: REAR SWAY BAR ASSY
Effective: 2021-02-26
Alternative parts: 7000-060610-10000
Price: 39,60 € : 39,60 €
03
P/N (SKU): 30204-080840
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts: 30204-080810
Specification: M8
Price: 0,55 € : 0,55 €
04
P/N (SKU): 30006-080016840
Part Name: BOLT M8x16
Effective: 2021-02-26
Alternative parts: 30006-080016810
Specification: M8x16
Price: 1,65 € : 1,65 €
-+
05
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts: 9030-060002-0BP00
Price: 4,60 € : 4,60 €
-+
07
P/N (SKU): 9030-060003
Part Name: RUBBER SUPPORT SEAT
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
08
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
09
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
10
P/N (SKU): 9060-060001
Part Name: GUARD, REAR BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Price: 15,10 € : 15,10 €
-+
11
P/N (SKU): 30800-06300
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: 63
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): 30499-03081
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts:
Specification: DAC3063W
Price: 36,60 € : 36,60 €
-+
13
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 5,10 € : 5,10 €
-+
14
P/N (SKU): 9060-060701-1000
Part Name: UPPER MIDDLE SPACER, REAR BEARING CARRIER
Effective: 2021-02-26
Alternative parts: 9060-060701-10001
Price: 2,60 € : 2,60 €
15
P/N (SKU): 30001-102095140
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 9060-060703-10001
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 113,50 € : 113,50 €
-+
18
P/N (SKU): 9060-060704
Part Name: LOWER MOUNTING SHAFT, REAR BEARING CARRIER
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
19
P/N (SKU): 7000-060110
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-060110-00001
Specification: ELECTROPHORESIS BLACK
Price: 34,50 € : 34,50 €
20
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 9,70 € : 9,70 €
-+
21
P/N (SKU): 9060-060101
Part Name: SPACER, REAR UPPER SWING ARM
Effective: 2021-02-26
Alternative parts: 9060-060101-00002
Price: 5,00 € : 5,00 €
22
P/N (SKU): 4060-060101
Part Name: MOUNTING SHAFT, REAR ARM
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 7000-060310
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-060310-00001
Specification: ELECTROPHORESIS BLACK
Price: 34,50 € : 34,50 €
24
P/N (SKU): 9060-060803-10001
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 152,50 € : 152,50 €
-+
25
P/N (SKU): 7000-060500
Part Name: REAR SHOCK ABSORBER
Effective: 2021-02-26
Remarks: YIT
Alternative parts: 7000-060500-10000
Specification: Yu an
Price: 298,90 € : 298,90 €
26
P/N (SKU): 30006-102055840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
27
P/N (SKU): 9060-060002
Part Name: PLUG, REAR SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
28
P/N (SKU): 7000-060210
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 48,70 € : 48,70 €
-+
29
P/N (SKU): 9060-050201
Part Name: FENDER, SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
30
P/N (SKU): 7000-060410
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 48,70 € : 48,70 €
-+
