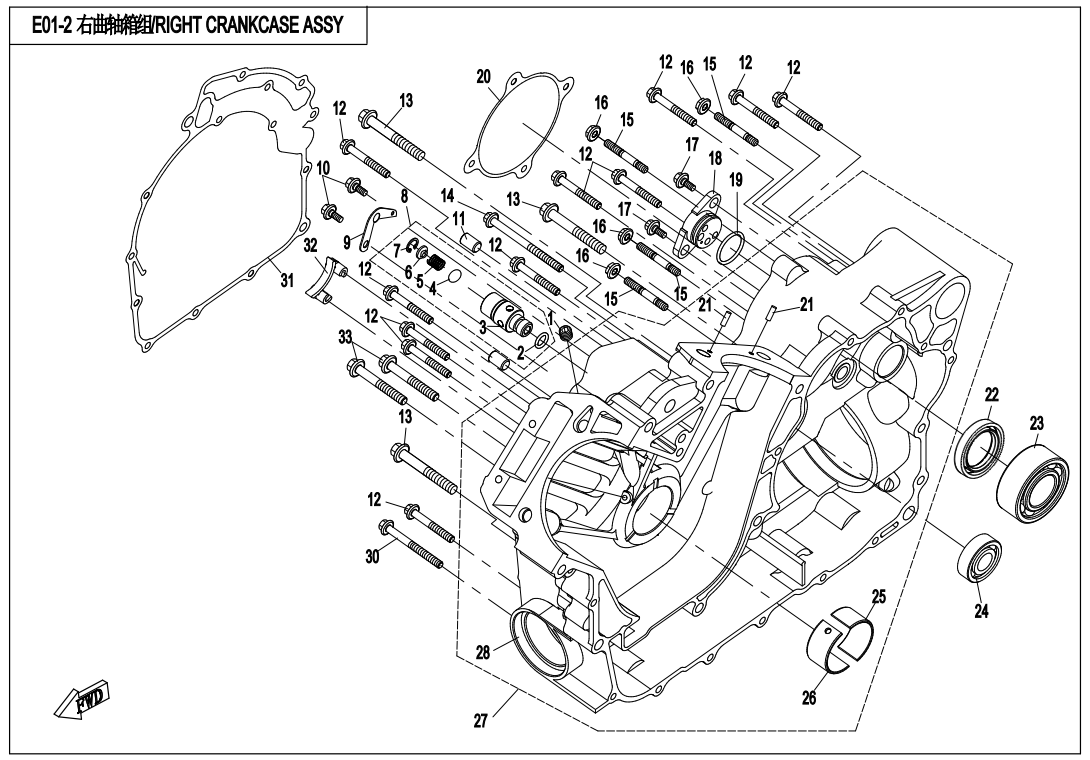

RIGHT CRANKCASE ASSY. - E01-2

RIGHT CRANKCASE ASSY. - E01-2

No.

01
P/N (SKU): 01A0-012010
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 01A0-012010-00001
Price: 0,40 € : 0,40 €
02
P/N (SKU): 0180-073002
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 10x2.3
Price: 0,40 € : 0,40 €
-+
03
P/N (SKU): 0800-073001
Part Name: BODY, RELIEF VALVE
Effective: 2021-02-26
Remarks: is replaced by 0800-073000-1000
Alternative parts: 0800-073000-1000
Price: 1,50 € : 1,50 €
04
P/N (SKU): 0180-073003
Part Name: RELIEF VALVE OIL PLUG
Effective: 2021-02-26
Alternative parts:
Price: 0,75 € : 0,75 €
-+
05
P/N (SKU): 0180-073004-0050
Part Name: RELIEF VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 0,40 € : 0,40 €
-+
06
P/N (SKU): 0180-073005-0010
Part Name: SPRING RETAINER
Effective: 2021-02-26
Alternative parts:
Price: 0,40 € : 0,40 €
-+
07
P/N (SKU): 30800-01205
Part Name: CIRCLIP FOR HOLE 12
Effective: 2021-02-26
Alternative parts:
Specification: 12
Price: 0,75 € : 0,75 €
-+
08
P/N (SKU): 0800-073000
Part Name: RELIEF VALVE ASSY
Effective: 2021-02-26
Remarks: is replaced by 0800-073000-1000
Alternative parts: 0800-073000-20001
Price: 4,80 € : 4,80 €
09
P/N (SKU): 0180-073006-0010
Part Name: RELIEF VALVE PRESS PLATE
Effective: 2021-02-26
Alternative parts:
Price: 0,75 € : 0,75 €
-+
10
P/N (SKU): 0010-021019-0030
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 0010-021019-0010
Specification: M6x12
Price: 0,40 € : 0,40 €
11
P/N (SKU): 0010-021005
Part Name: DOWEL PIN 10x14
Effective: 2021-02-26
Alternative parts:
Specification: 10x14
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 0180-013208-0030
Part Name: BOLT M6x45
Effective: 2021-02-26
Remarks: is replaced by 0180-013208-0010
Alternative parts: 0180-013208-0010
Specification: M6x45
Price: 0,40 € : 0,40 €
13
P/N (SKU): 0130-011109-0030
Part Name: BOLT M8x60
Effective: 2021-02-26
Alternative parts: 0130-011109-0010
Specification: M8x60
Price: 0,75 € : 0,75 €
14
P/N (SKU): 0110-013031-0030
Part Name: BOLT M6x80
Effective: 2021-02-26
Remarks: is replaced by 0110-013031-0010
Alternative parts: 0110-013031-0010
Specification: M6x80
Price: 0,40 € : 0,40 €
15
P/N (SKU): 30011-060030820
Part Name: STUD
Effective: 2021-02-26
Alternative parts:
Specification: AM6x30-8.8
Price: 0,75 € : 0,75 €
-+
16
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,05 € : 1,05 €
-+
17
P/N (SKU): 0010-090005-0030
Part Name: BOLT M6x16
Effective: 2021-02-26
Remarks: is replaced by 0010-090005-0010
Alternative parts: 0010-090005-0010
Specification: M6x16
Price: 0,40 € : 0,40 €
18
P/N (SKU): 0800-012200
Part Name: GEAR SENSOR ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 16,30 € : 16,30 €
-+
19
P/N (SKU): 0180-023002
Part Name: O-SEAL RING 24x2.5
Effective: 2021-02-26
Alternative parts:
Specification: 24x2.5
Price: 1,05 € : 1,05 €
-+
20
P/N (SKU): 0800-012002
Part Name: GASKET(2), CVT CASE
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
21
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE P5x11.8
Effective: 2021-02-26
Alternative parts:
Specification: P5x11.8
Price: 1,05 € : 1,05 €
-+
22
P/N (SKU): 0180-012006
Part Name: OIL SEAL 30x45x7
Effective: 2021-02-26
Alternative parts: 0180-012006-00001
Specification: 30x45x7
Price: 5,10 € : 5,10 €
23
P/N (SKU): 30499-03000
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 5206
Price: 66,10 € : 66,10 €
-+
24
P/N (SKU): 30400-01704
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 17
Price: 9,55 € : 9,55 €
-+
25
P/N (SKU): 0800-011102-0001
Part Name: PLAIN BEARING 1
Effective: 2021-02-26
Remarks: RED
Alternative parts: 0800-011102-00011
Specification: RED@THIN
Price: 4,10 € : 4,10 €
25
P/N (SKU): 0800-011102-0002
Part Name: PLAIN BEARING 1
Effective: 2021-02-26
Remarks: BLUE
Alternative parts: 0800-011102-00021
Specification: BLUE@THICK
Price: 8,15 € : 8,15 €
26
P/N (SKU): 0800-011103-0002
Part Name: PLAIN BEARING 2
Effective: 2021-02-26
Remarks: BLUE
Alternative parts: 0800-011103-00021
Specification: BLUE@THICK
Price: 4,10 € : 4,10 €
26
P/N (SKU): 0800-011103-0001
Part Name: PLAIN BEARING 2
Effective: 2021-02-26
Remarks: RED
Alternative parts: 0800-011103-00011
Specification: RED@THIN
Price: 4,10 € : 4,10 €
-+
27
P/N (SKU): 0800-012100-0002
Part Name: RH CRANKCASE ASSY
Effective: 2021-02-26
Remarks: MARK "B"/FOR BLUE BEARING SLEEVE
Alternative parts:
Specification: GROUP B/FOR BLUE BEARING SLEEVE
Price: 265,40 € : 265,40 €
-+
27
P/N (SKU): 0800-012100-0001
Part Name: RH CRANKCASE ASSY
Effective: 2021-02-26
Remarks: MARK "A"/FOR RED BEARING SLEEVE
Alternative parts:
Specification: GROUP A/FOR RED BEARING SLEEVE
Price: 230,30 € : 230,30 €
-+
28
P/N (SKU): 0800-012101-0001
Part Name: CRANKCASE, RH
Effective: 2021-02-26
Remarks: MARK "A"/FOR RED BEARING SLEEVE
Alternative parts: 0800-012101-20010
Specification: GROUP A/FOR RED BEARING SLEEVE
Price: 182,10 € : 182,10 €
28
P/N (SKU): 0800-012101-0002
Part Name: CRANKCASE, RH
Effective: 2021-02-26
Remarks: MARK "B"/FOR BLUE BEARING SLEEVE
Alternative parts: 0800-012101-30010+0800-011001-10000+0800-011101-30010
Specification: GROUP B/FOR BLUE BEARING SLEEVE
Price: 182,10 € : 182,10 €
29
P/N (SKU): 01A0-011003
Part Name: NOZZLE
Effective: 2021-02-26
Alternative parts:
Price: 0,75 € : 0,75 €
-+
30
P/N (SKU): 0010-013010-0030
Part Name: BOLT M6x50
Effective: 2021-02-26
Remarks: is replaced by 0010-013010-0010
Alternative parts: 0010-013010-0010
Specification: M6x50
Price: 0,40 € : 0,40 €
31
P/N (SKU): 0800-012001
Part Name: GASKET 1, CVT CASE
Effective: 2021-02-26
Alternative parts:
Price: 6,10 € : 6,10 €
-+
32
P/N (SKU): 0800-011007
Part Name: CHAIN GUARD
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
33
P/N (SKU): 0040-012006-0030
Part Name: BOLT M8x50
Effective: 2021-02-26
Remarks: is replaced by 0040-012006-0010
Alternative parts: 0040-012006-0010
Specification: M8X50
Price: 0,75 € : 0,75 €
