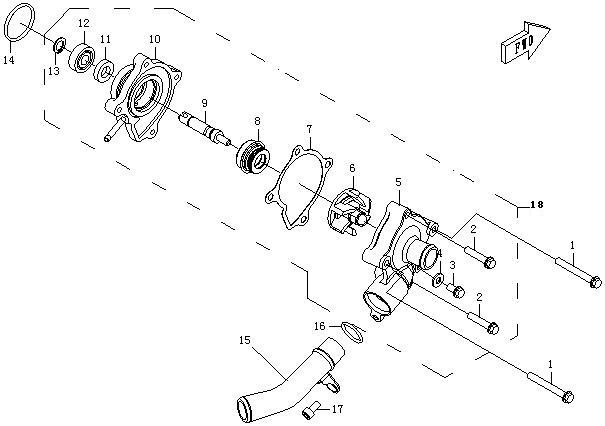

WATER PUMP ASSY. - E22

WATER PUMP ASSY. - E22

No.

01
P/N (SKU): 0010-013010-0030
Part Name: BOLT M6x50
Effective: 2021-02-26
Remarks: is replaced by 0010-013010-0010
Alternative parts: 0010-013010-0010
Specification: M6x50
Price: 1,50 € : 1,50 €
02
P/N (SKU): 0010-060012-0030
Part Name: BOLT M6x30
Effective: 2021-02-26
Remarks: is replaced by 0010-060012-0010
Alternative parts: 0010-060012-0010
Specification: M6x30
Price: 1,50 € : 1,50 €
03
P/N (SKU): 0010-021019-0030
Part Name: BOLT M6x12
Effective: 2021-02-26
Specification: M6x12
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0010-060009
Part Name: WASHER 6
Effective: 2021-02-26
Specification: 6
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 060C-081002
Part Name: WATER PUMP COVER
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
06
P/N (SKU): 0180-081001
Part Name: WATER PUMP IMPELLER
Effective: 2021-02-26
Alternative parts: 0180-081001-00001
Price: 5,00 € : 5,00 €
07
P/N (SKU): 0180-081006
Part Name: WATER PUMP COVER GASKET
Effective: 2021-02-26
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 0010-081000
Part Name: WATER SEAL ASSY
Effective: 2021-02-26
Alternative parts: 0700-081200
Price: 10,00 € : 10,00 €
09
P/N (SKU): 0180-081004-0050
Part Name: WATER PUMP SHAFT
Effective: 2021-02-26
Price: 4,00 € : 4,00 €
-+
10
P/N (SKU): 0180-081100
Part Name: HOUSING, WATER PUMP
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
11
P/N (SKU): 0110-080005
Part Name: OIL SEAL
Effective: 2021-02-26
Specification: 10x20x5
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30400-01000
Part Name: DEEP GROOVE BALL BEARING
Effective: 2021-02-26
Specification: 10×26×8
Price: 4,50 € : 4,50 €
-+
13
P/N (SKU): 30801-01005
Part Name: CIRCLIP FOR SHAFT
Effective: 2021-02-26
Specification: 10
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0180-080002
Part Name: O-RING
Effective: 2021-02-26
Specification: 34x2.5
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0180-082000
Part Name: WATER OUTLET PIPE
Effective: 2021-02-26
Price: 12,00 € : 12,00 €
-+
16
P/N (SKU): 0180-080001
Part Name: O-RING
Effective: 2021-02-26
Specification: 21x2.5
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 060C-081000
Part Name: WATER PUMP SUB ASSY
Effective: 2021-02-26
Price: 37,00 € : 37,00 €
-+
