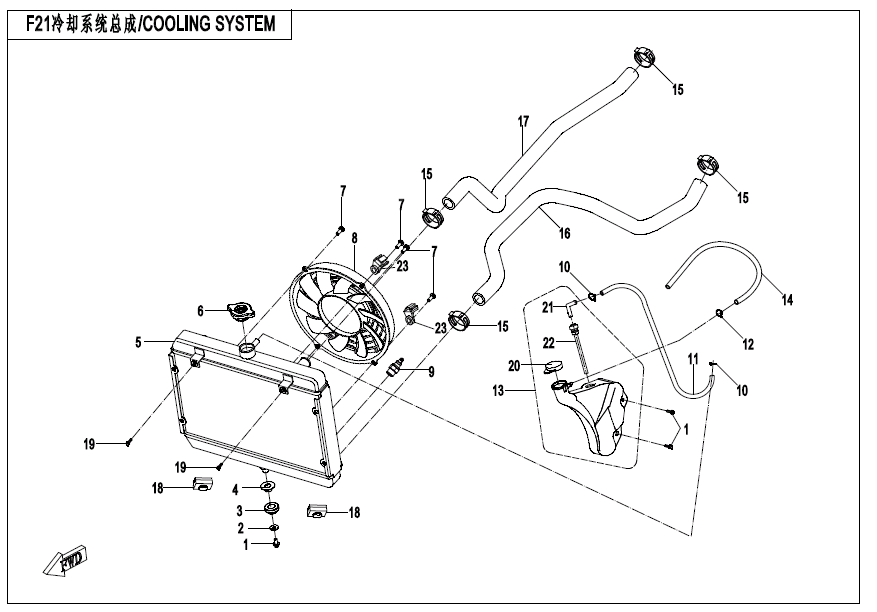

COOLING SYSTEM - F21

COOLING SYSTEM - F21

No.

01
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
02
P/N (SKU): 30301-060442
Part Name: WASHER
Effective: 2021-02-26
Remarks: φ10
Alternative parts: 30301-060412
Specification: 6
Price: 0,55 € : 0,55 €
03
P/N (SKU): 9010-180004
Part Name: RUBBER SLEEVE, RADIATOR
Effective: 2021-02-26
Alternative parts:
Price: 5,90 € : 5,90 €
-+
04
P/N (SKU): 9010-180010
Part Name: STEEL SLEEVE, RADIATIOR
Effective: 2021-02-26
Alternative parts:
Price: 1,05 € : 1,05 €
-+
05
P/N (SKU): 9010-180100-1000
Part Name: RADIATOR ASSY
Effective: 2021-02-26
Alternative parts:
Specification: STAINLESS STEEL
Price: 167,80 € : 167,80 €
-+
05
P/N (SKU): 9010-180100
Part Name: RADIATOR ASSY
Effective: 2021-02-26
Remarks: is replaced by 9010-180100-1000
Alternative parts: 9010-180100-1000
Price: 155,30 € : 155,30 €
06
P/N (SKU): 9010-180300
Part Name: CAP, WATER FILLER
Effective: 2021-02-26
Alternative parts: 8010-180024
Price: 7,15 € : 7,15 €
07
P/N (SKU): 30006-060020840
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 30006-060020810
Specification: M6x20
Price: 0,55 € : 0,55 €
07
P/N (SKU): 30112-060012440
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 9010-180200
Part Name: FAN@^MOTOR
Effective: 2021-02-26
Remarks: CHANGXIN；is replaced by 9010-180200-3000+9010-180201
Alternative parts: 9010-180201+9010-180200-3000
Price: 57,10 € : 57,10 €
08
P/N (SKU): 9010-180200-A000
Part Name: FAN@^MOTOR
Effective: 2021-02-26
Remarks: HUALIN；isreplaced by 9010-180200-3000+9010-180201
Alternative parts: 9010-180201+9010-180200-3000
Price: 56,00 € : 56,00 €
09
P/N (SKU): 0010-135000
Part Name: THERMO SWITCH
Effective: 2021-02-26
Remarks: 80±4℃,Non-waterproofed
Alternative parts:
Price: 14,80 € : 14,80 €
-+
10
P/N (SKU): 30601-112010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A12
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 8060-180001
Part Name: WATER HOSE, RESERVOIR TANK
Effective: 2021-02-26
Alternative parts:
Price: 5,15 € : 5,15 €
-+
12
P/N (SKU): 30601-108510
Part Name: CLAMP
Effective: 2021-02-26
Remarks: is replaced by 30601-108520
Alternative parts: 30601-109010
Specification: A8.5
Price: 0,55 € : 0,55 €
13
P/N (SKU): 9010-180400-1000
Part Name: RESERVOIR TANK ASSY
Effective: 2021-02-26
Alternative parts:
Price: 15,30 € : 15,30 €
-+
14
P/N (SKU): 9010-180005
Part Name: OVERFLOW HOSE, RESERVOIR TANK
Effective: 2021-02-26
Alternative parts:
Price: 5,90 € : 5,90 €
-+
15
P/N (SKU): 0180-023500-0030
Part Name: CLAMP, WATER HOSE
Effective: 2021-02-26
Alternative parts: 9010-180007
Price: 1,25 € : 1,25 €
16
P/N (SKU): 9010-180002
Part Name: WATER OUTLET HOSE,RADIATOR
Effective: 2021-02-26
Alternative parts:
Price: 20,80 € : 20,80 €
-+
17
P/N (SKU): 9010-180003
Part Name: WATER INLET HOSE,RADIATOR
Effective: 2021-02-26
Alternative parts:
Price: 20,80 € : 20,80 €
-+
18
P/N (SKU): 5190-001003
Part Name: MAIN BRACKET RUBBER DAMPER
Effective: 2021-02-26
Alternative parts:
Price: 1,05 € : 1,05 €
-+
19
P/N (SKU): 30006-060025840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 8010-180023
Part Name: CAP, RESERVOIR TANK
Effective: 2021-02-26
Alternative parts:
Price: 2,55 € : 2,55 €
-+
21
P/N (SKU): 8030-180302
Part Name: JOINT
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 8010-180028
Part Name: HOSE, RESERVOIR TANK
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
23
P/N (SKU): 9030-180071
Part Name: ADAPTOR, CLIP
Effective: 2021-02-26
Alternative parts:
Price: 0,85 € : 0,85 €
-+
