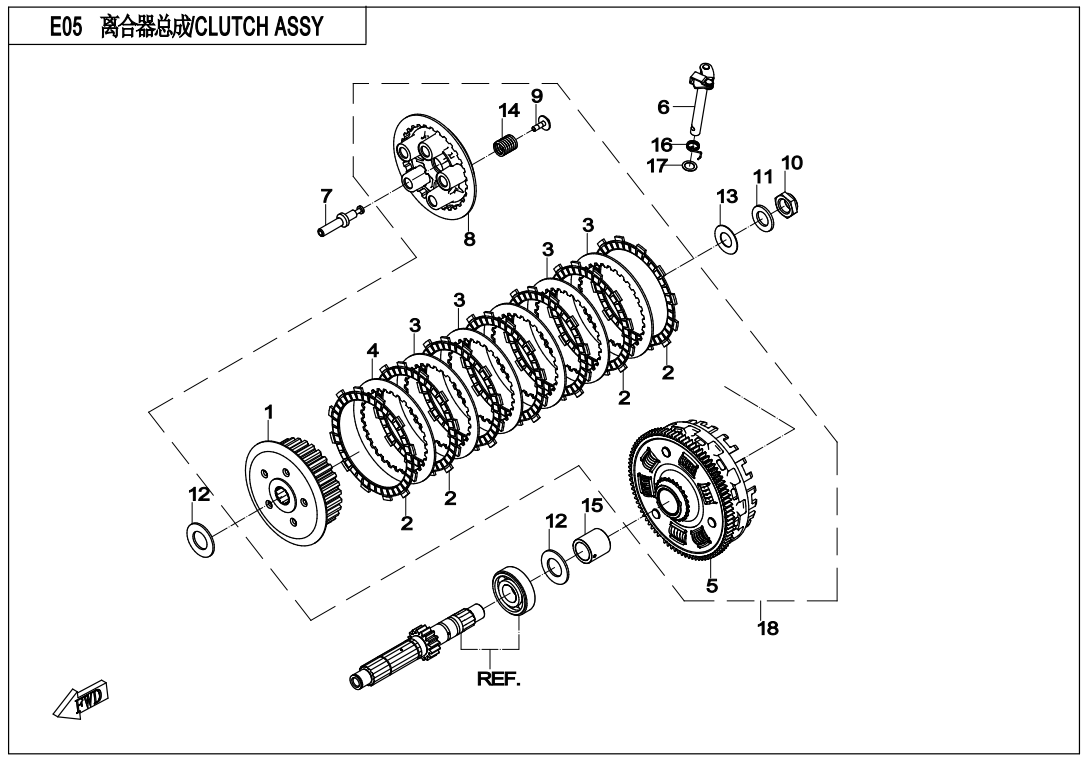

CLUTCH ASSY - E05

CLUTCH ASSY - E05

No.

01
P/N (SKU): 0700-050100
Part Name: CENTRAL SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 27,90 € : 27,90 €
-+
02
P/N (SKU): 0700-050200
Part Name: FRICTION PLATE
Effective: 2021-02-26
Alternative parts:
Price: 21,30 € : 21,30 €
-+
03
P/N (SKU): 0700-050001
Part Name: STEEL PLATE B
Effective: 2021-02-26
Remarks: t=2.5
Alternative parts:
Specification: t=2.5
Price: 5,50 € : 5,50 €
-+
04
P/N (SKU): 0700-050005
Part Name: STEEL PLATE A
Effective: 2021-02-26
Remarks: t=2.0
Alternative parts:
Specification: t=2.0
Price: 5,50 € : 5,50 €
-+
05
P/N (SKU): 0700-051000
Part Name: HOUSING ASSY
Effective: 2021-02-26
Alternative parts:
Price: 167,50 € : 167,50 €
-+
06
P/N (SKU): 0700-013200
Part Name: CLUTCH CONTROL SHAFT ASSY
Effective: 2021-02-26
Remarks: is replaced by 0700-013200-1000
Alternative parts: 0700-013200-1000
Price: 13,60 € : 13,60 €
07
P/N (SKU): 0700-050004
Part Name: TIE-ROD
Effective: 2021-02-26
Alternative parts:
Price: 4,80 € : 4,80 €
-+
08
P/N (SKU): 0700-0500A1
Part Name: OPERATING PAD, CLUTCH
Effective: 2021-02-26
Alternative parts:
Price: 18,30 € : 18,30 €
-+
09
P/N (SKU): 0700-050300
Part Name: BOLT ASSY
Effective: 2021-02-26
Alternative parts:
Specification: M6x20
Price: 2,70 € : 2,70 €
-+
10
P/N (SKU): 0700-061002
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 0700-061002-00001
Price: 2,70 € : 2,70 €
11
P/N (SKU): 0700-061003
Part Name: CIRCLIP 20
Effective: 2021-02-26
Alternative parts:
Specification: 20
Price: 2,70 € : 2,70 €
-+
12
P/N (SKU): 0700-061005
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 25.5x47x2.5
Price: 2,40 € : 2,40 €
-+
13
P/N (SKU): 0A70-011007
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 20x40x1
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 0700-050002
Part Name: PRESS SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
15
P/N (SKU): 0700-061004
Part Name: CLUTCH SHAFT SLEEVE
Effective: 2021-02-26
Alternative parts: 0700-061004-00010
Price: 8,30 € : 8,30 €
16
P/N (SKU): 0700-013006
Part Name: CLUTCH CONTROL LEVER RETURN SPRING
Effective: 2021-02-26
Alternative parts: 0700-013006-10000
Price: 1,80 € : 1,80 €
17
P/N (SKU): 0700-013007
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 0700-013007-10000
Specification: 12.5x18.5x0.6
Price: 1,00 € : 1,00 €
-+
18
P/N (SKU): 0700-050000-00010
Part Name: CLUTCH ASSY
Effective: 2021-02-26
Alternative parts: 0700-052000-00010
Specification: GROUP A
Price: 321,50 € : 321,50 €
-+
18
P/N (SKU): 0700-050000-00020
Part Name: CLUTCH ASSY
Effective: 2021-02-26
Alternative parts: 0700-052000-00020
Specification: GROUP B
Price: 321,50 € : 321,50 €
