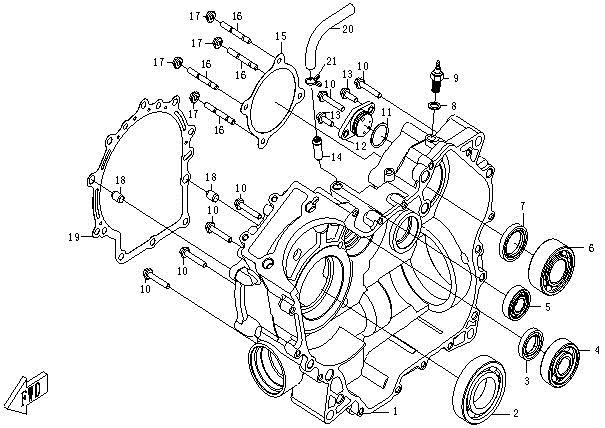

RIGHT CRANKCASE - E03 | 2011, ENGINE, 196S-B(X6) | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0180-012100-0080

Part Name: RH CRANKCASE ASSY

Effective: 2021-02-26

Alternative parts:

Price: 178,00 € : 178,00 €

02

P/N (SKU): 30499-04000

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 6208

Price: 34,00 € : 34,00 €

03

P/N (SKU): 0180-012004

Part Name: OIL SEAL

Effective: 2021-02-26

Alternative parts:

Specification: 22x38x7

Price: 11,00 € : 11,00 €

04

P/N (SKU): 30400-02200

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Price: 8,50 € : 8,50 €

05

P/N (SKU): 30400-01703

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 6203RZ

Price: 8,50 € : 8,50 €

06

P/N (SKU): 30499-03000

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 5206

Price: 68,00 € : 68,00 €

07

P/N (SKU): 0180-012006

Part Name: OIL SEAL

Effective: 2021-02-26

Alternative parts: 0180-012006-10000

Specification: 30x45x7

Price: 6,00 € : 6,00 €

08

P/N (SKU): 0010-060010

Part Name: WASHER 10

Effective: 2021-02-26

Alternative parts:

Specification: 10

Price: 1,50 € : 1,50 €

09

P/N (SKU): 0180-012310-0010

Part Name: REVERSE SENSOR ASSY

Effective: 2021-02-26

Alternative parts: 0700-065210

Price: 18,00 € : 18,00 €

10

P/N (SKU): 0010-013008-0030

Part Name: BOLT M6x35

Effective: 2021-02-26

Remarks: is replaced by 0010-013008-0010

Alternative parts: 0010-013008-0010

Specification: M6x35

Price: 1,50 € : 1,50 €

11

P/N (SKU): 0180-023002

Part Name: O-SEAL RING

Effective: 2021-02-26

Alternative parts:

Specification: 24x2.5

Price: 1,50 € : 1,50 €

12

P/N (SKU): 0180-012200

Part Name: GEAR SENSOR ASSY

Effective: 2021-02-26

Alternative parts:

Price: 22,00 € : 22,00 €

13

P/N (SKU): 0010-023008-0030

Part Name: BOLT M6x18

Effective: 2021-02-26

Remarks: is replaced by 0010-023008-0010

Alternative parts: 0010-023008-0010

Specification: M6x18

Price: 1,50 € : 1,50 €

14

P/N (SKU): 0010-013006-0010

Part Name: BREATHER HOSE JOINT

Effective: 2021-02-26

Alternative parts:

Price: 2,00 € : 2,00 €

15

P/N (SKU): 0180-012002

Part Name: GASKET(2), CVT CASE

Effective: 2021-02-26

Alternative parts:

Price: 4,00 € : 4,00 €

16

P/N (SKU): 30011-060040820

Part Name: STUD

Effective: 2021-02-26

Alternative parts:

Specification: M6x40

Price: 2,00 € : 2,00 €

17

P/N (SKU): 30204-060810

Part Name: NUT

Effective: 2021-02-26

Alternative parts:

Specification: M6

Price: 1,50 € : 1,50 €

18

P/N (SKU): 0010-021005

Part Name: DOWEL PIN

Effective: 2021-02-26

Alternative parts:

Specification: 10x14

Price: 1,50 € : 1,50 €

19

P/N (SKU): 0180-012001

Part Name: GASKET(1), CVT CASE

Effective: 2021-02-26

Alternative parts:

Price: 7,50 € : 7,50 €

20

P/N (SKU): 0180-012008

Part Name: BREATHER HOSE

Effective: 2021-02-26

Alternative parts: 0010-013007

Price: 3,50 € : 3,50 €

21

P/N (SKU): 30601-114010

Part Name: "CLAMP

Effective: 2021-02-26

Alternative parts:

Specification: "

Price: 1,50 € : 1,50 €
